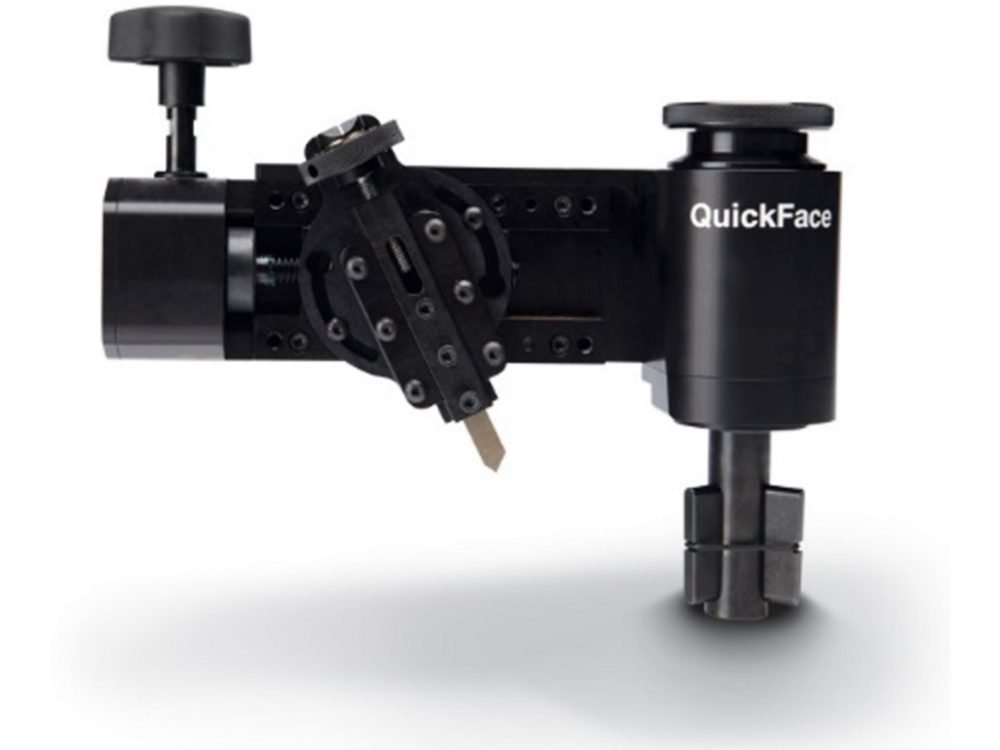

Модель : QuickFace
Описание :
The QuickFacemakes re-facing easy. Every day we’re presented with hundreds of situations where flanges that need to be re-faced are in awkward or even dangerous locations. Pipes can be situated at the top of a refinery installation or miles away from the nearest power line.
Key Features
- The QuickFaceweighs only 6.8kg (15lbs).
- The tool boasts a wide mounting range of 25.4mm -157.5mm (1" -6") ID and is capable of facing 25.4mm -304.8mm (1" -12") OD flanges using standard half-inch cutting tools.
- QuickFaceis equipped with different lead screws making it capable for resurfacing damaged raised-face or lens-ring joint flanges to the highest safety standards required.
- The arm is then rotated by hand using a worm-gear mechanism to provide a perfect spiral “gramophone” finish. The tool can be adjusted with a calibrated slide to define cut depth and the correct finish.
Помните о безопасности
Номинальные значения, указанные производителем, являются максимально безопасными. Хорошая практика является использование 80% этих показателей!
